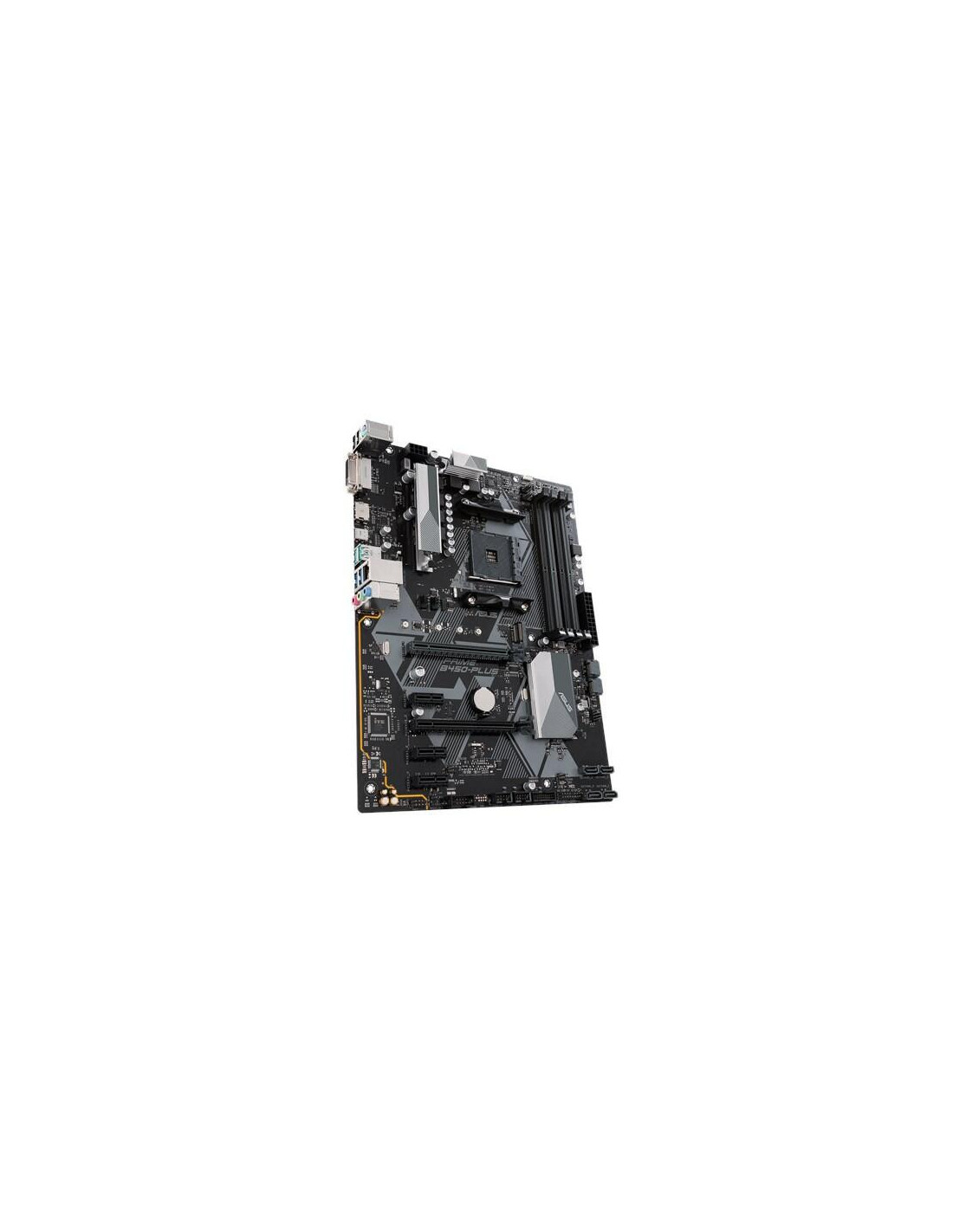

Asus PRIME B450-PLUS - socket AMD AM4, USB 3.1, M.2, HDMI, MB

Detalhes técnicos:
- Estrutura da motherboard: ATX
- Motherboard chipset: AMD B450

Processador:
- Tipo de processador: AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors, Supports CPU up to 8 cores
- Processor socket: AM4

Memória:
- Memória máxima: 64GB
- Tamanho da memória flash: 4 slots
- Supported memory types: DDR4
- Supported memory clock speeds: 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
- ECC: ECC Memory (ECC mode) support varies by CPU.
- Memory channels support: Dual
- Unbuffered memory: Sim

Áudio:
- Canais áudio: 8-Channel High Definition Audio
- Saída áudio: Realtek® ALC887-VD2 Audio CODEC

Pesos e dimensões:
- Largura do produto: 30.5 cm
- Profundidade da Unidade: 23.4 cm

Rede:
- Controlador LAN: Realtek® RTL8111H
- Interface de rede: RJ-45
- LAN sem Fios: Não

Vídeo:
- Graphics adapter family: Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors

Internal I/O:
- Conectores USB 2.0: 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
- Conector S/PDIF out: 1 x S/PDIF out header(s)
- Conector ventoínha CPU: 1 x CPU Fan connector(s) (1 x 4 -pin)
- Número de conectores COM: 1 x COM port(s) connector(s)
- Conector ATX (24-pin): 1 x 24-pin EATX Power connector(s)
- Conector da ventoínha: 3 x Chassis Fan connector(s) (3 x 4 -pin)
- Clear CMOS button: 1 x Clear CMOS jumper(s)
- Conectores USB 3.0:

• AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation: 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
• AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
• AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
• AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
• AMD B450 chipset :

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
- Número de conectores SATA 3: 6 x SATA 6Gb/s connector(s)

Painel traseiro I/O portas:
- Quantidade de portas PS/2: 1 x PS/2 keyboard/mouse combo port(s)
- Quantidade de portas DVI-D: 1 x DVI-D
- Quantidade de portas HDMI: 1 x HDMI
- Quantidade de portas USB 3.0:

• 2 x USB 3.1 Gen 2
• 2 x USB 3.1 Gen 1 ,

- Quantidade de portas Ethernet: 1x

Slot de expansão:
- PCI Express x1 slots: 3 x PCIe 2.0 x1
- M.2 slots: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

BIOS:
- Tipo de BIOS: UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
- Tamanho da memória BIOS: 128 Mb Flash ROM

Other features:
- Sistema Operativo: Windows® 10 64-bit
