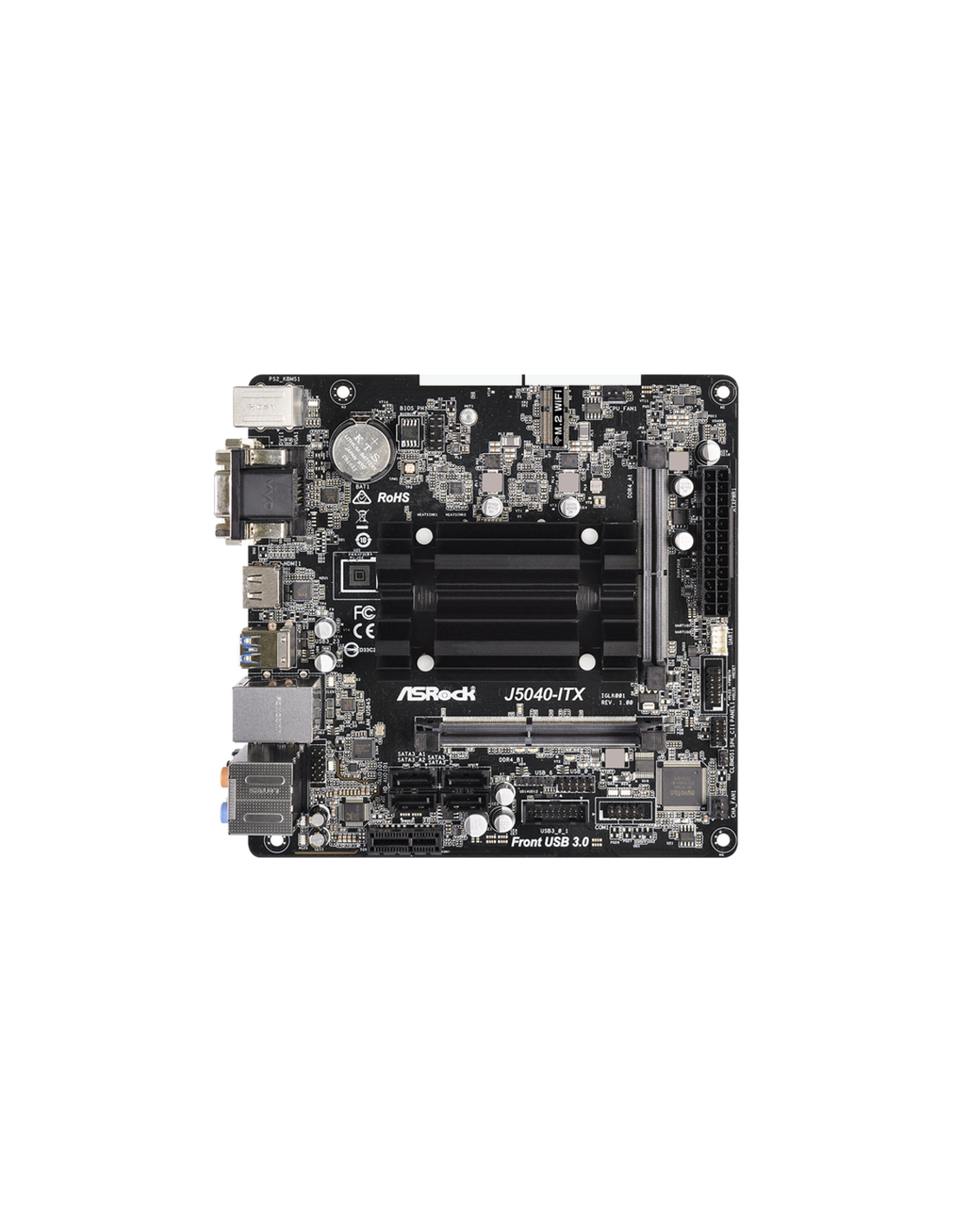

Motherboard ASROCK J5040-ITX
Motherboard ASROCK J5040-ITX
Motherboard ASROCK J5040-ITX

Motherboard ASROCK J5040-ITX

AsRock
145-90-MXBCD0-A0UAYZ
Disponível
169,90 €
Com IVA
J5040-ITX
ASRock Super Alloy
Intel® Quad-Core Pentium® Processor J5040 (up to 3.2 GHz)
Supports DDR4 2133/2400 SO-DIMM
1 PCIe 2.0 x1, 1 M.2 (Key E)
Graphics Output Options: D-Sub, HDMI, DVI-D
7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
4 SATA3
4 USB 3.2 Gen1 (2 Front, 2 Rear)
Supports Full Spike Protection, ASRock Live Update & APP Shop


  • Unique Feature
    ASRock Super Alloy
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Intel® Quad-Core Pentium® Silver Processor J5040 (up to 3.2 GHz)
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 SO-DIMM Slots*
    - Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
    - Max. capacity of system memory: 8GB

    *2GB DRAM per module is not supported.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
    - Supports Plug and Play
    - ACPI 5.0 compliant wake up events
    - Supports jumperfree
    - SMBIOS 3.0 support
  • Graphics
    - Integrated Intel® UHD Graphics 605: 18 EUs inside (Up to 800MHz)
    - DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
    - HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
    - HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
    - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.2 with DVI-D and HDMI Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - ELNA Audio Caps
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCI Express 2.0 x1 Slot
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
  • Storage
    - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  • Connector
    - 1 x COM Port Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (3-pin)
    - 1 x Chassis Fan Connector (3-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*

    *USB3_0_1 and USB_0_1 cannot be occupied simultaneously. Please connect a USB cable to one of these headers only.

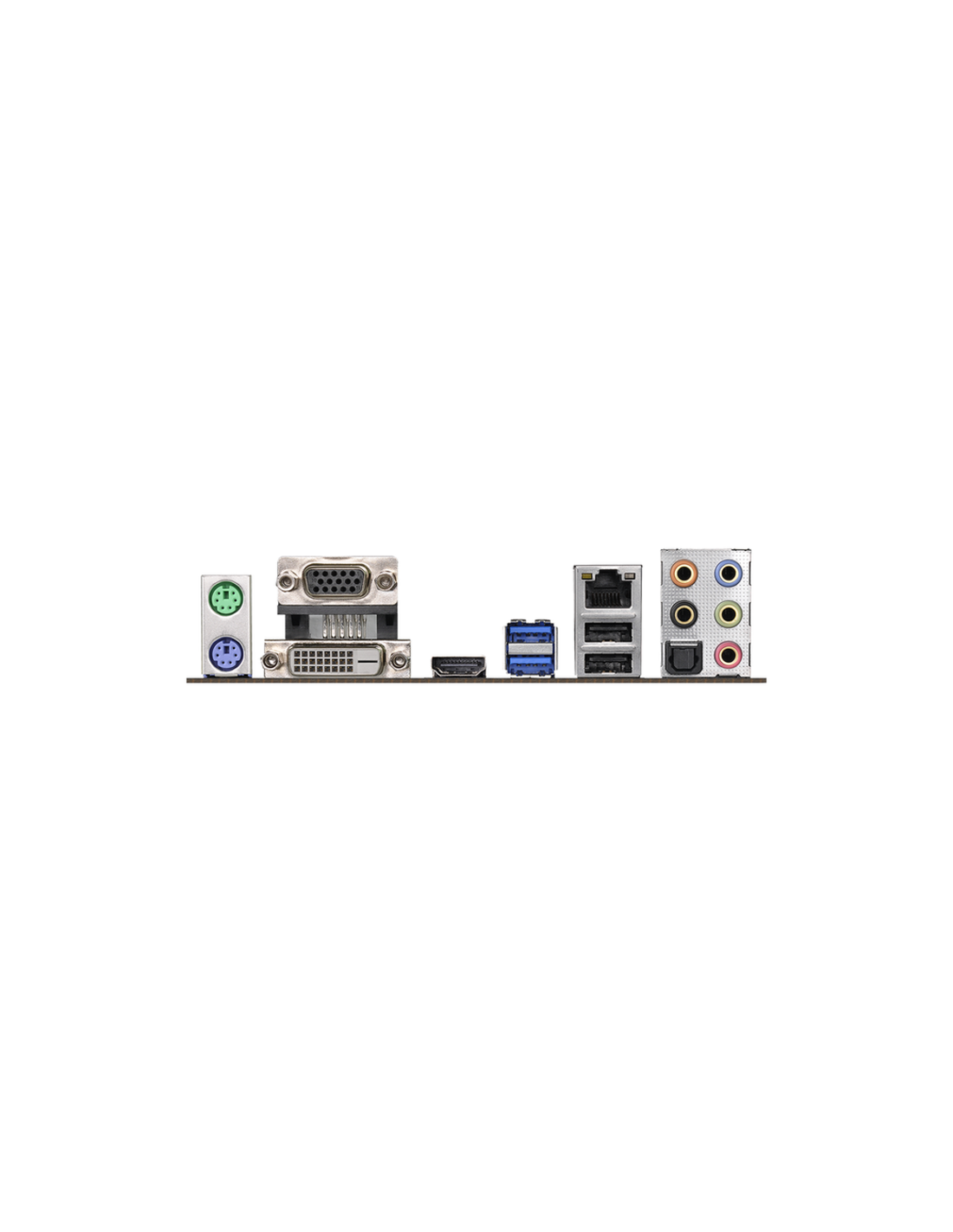

  • Rear Panel I/O
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock XFast LAN
    UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
  • Hardware Monitor
    - CPU/Chassis temperature sensing
    - CPU/Chassis Fan Tachometer
    - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU/Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    - Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
Referências:

Marca
ASRock
Modelo
J5040-ITX
Part Number
90-MXBCD0-A0UAYZ
EAN
4710483930515
Código de Produto
902191
Carateristicas Gerais:

Formato da Motherboard
MINI ITX
Socket / Processador
Intel® Quad-Core Pentium® Processor J5040 (up to 3.2 GHz)
BIOS
J5040-ITX
Memória:

Tipos de memórias suportadas
SO-DIMM DDR4
Número de slots de memória
2
Tipo de slots de memória
SO-DIMM
Memória máxima
8GB
Audio, Video e Rede:

Velocidade suportada
2400/2133 SO-DIMM
Gráficos
Intel UHD Graphics 605
Rede
10/100/100 Mb/s
Portas E/S:

USB 2.0
2
VGA
1
HDMI
1
DVI-I / DVI-D
0/1
PS/2
2
Audio
7.1 HD Audio
USB 3.2 (Ger. 1)
2
Rj45
1
Conectores internos:

SATA3
4
COM Port
1
Conector da CPU Fan (3-pin)
1
Chassis Intrusion Header
1
Conector do Cooler do Chassis
1
Outras Informações:

Garantia
1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
Type A USB 3.0 Port
1
Slots de expansão:

PCIe X1
1
Dados Logísticos :

Dimensões
170mm x 170mm
S/PDIF
1
